42HBSG
商品图片
 Price: $ 0.0
- + pcs

General Specifications



Available travel per step from 0.003mm to0.127mm

Diameter (mm)Pitch (mm)Lead (mm)Step
(mm)
5.561.222.440.0122
61.51.50.0075
6.351.224.880.0244
6.51.530.015
822002-4-80.01/0.02/0.04
9.5252.545.08/10.160.0254/0.0508



  Electrical Specifications




SeriesStepMotorRatedPhasePhaseHoldingDetentRotorLeadMotor
ModelAngleLengthCurrentResistanceInductanceTorqueTorqueInertiaWireWeight
(。)(mm)(A)(Ω)(mH)(Kg.cm)(g.cm)(g.c㎡)(NO.)(g)
42HB34F04SG1.83413.20.433452.4434120
42HB34F08SG1.8344.960.86.2102.4434120
42HB34F105SG1.8342.71.51.82.42.4434120
42HB40F04SG1.840120.430453.8454150
42HB40F08SG1.8408.80.811264454150
42HB40F105SG1.8403.151.52.143.5454150
42HB48F08SG1.8487.20.89154.5468200
42HB48F107SG1.8483.41.7234.5468200
42HB62F105SG1.86241.52.766.54102280

42HB62F2SG

1.8623.221.6384102280

  Dimensions（Unit:mm）

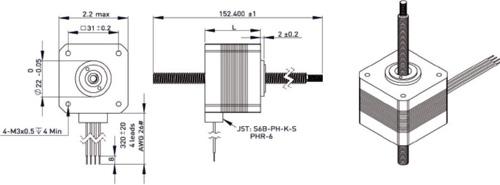

non-captive stepper

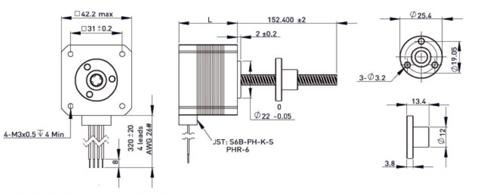

screw diameter 6.35MM

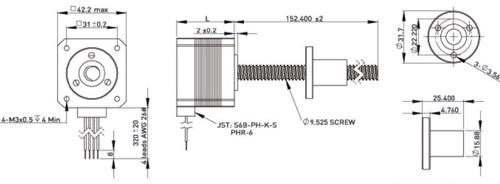

screw diameter 9.525MM
