Hybrid Closed-Loop Step Motor NEMA17
商品图片
 Price: $ 200.00
- + pcs

General Specifications

Nema17 2 Phase close loop Hybrid Stepper Servo Motor



Key Features



  • Full closed loop

  • Low heat/high efficiency

  • Smooth and accurate

  • High speed response

  • High torque /high speed

  • Suitable for driver UCS-2450



  Electrical Specifications




Size

Model No.

Step Angle

Current

Resistance

HoldTorque

Length

Shaft Dia

deg

A/Phase

Ω/Phase

N.m

mm

mm

Nema 17

   17HF34E1000

1.8

    0.6      8      0.25      35      5

  17HF40E1000

  0.6

     9.7

     0.4

     41

     5

  17HF48E1000

  0.6

     12

     0.48

     49

 5

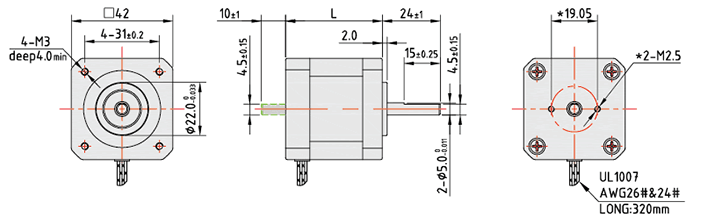

  Dimensions（Unit:mm）


N17 20160826155031.png
