close loop stepper motor Nema 34
商品图片
 Price: $ 55.00
- + pcs

General Specifications

Nema 34 step servo motor and driver

  • Full closed loop

  • Low heat/high efficiency

  • Smooth and accurate

  • High speed response

  • High torque /high speed



Typical applications：

CNC machine ,cutting machine ,engraving machine

  Electrical Specifications


2 phase hybrid step motor Electrical Specification












ModelCurrentResistanceInductanceHolding torqueInertiaLengthWeightDownload
AΩ±10%mH±20%N·mOZ·ing/cm²mmKgLbs
34H260-02S/D3.01.06.03.04251.160.51.63.5
34H260-03S/D4.50.52.73.04251.160.51.63.5
34H260-04S/D6.00.31.63.04251.160.51.63.5
34H268-02S/D3.01.28.53.65101.466.51.84.0
34H268-03S/D4.50.54.03.65101.466.51.84.0
34H268-04S/D6.00.32.23.65101.466.51.84.0
34H280-02S/D3.01.312.04.56371.8752.14.6
34H280-03S/D4.50.66.04.56371.8752.14.6
34H280-04S/D6.00.33.44.56371.8752.14.6
34H298-02S/D3.01.718.07.210202.896.52.96.4
34H298-03S/D4.50.88.37.210202.896.52.96.4
34H298-04S/D6.00.54.37.210202.896.52.96.4
34H120-02S/D3.02.125.78.512043.6113.53.67.9
34H120-03S/D4.50.911.88.512043.6113.53.67.9
34H120-04S/D6.00.56.58.512043.6113.53.67.9
34H128-03S/D4.51.012.010.514874.21264.19.0
34H128-04S/D6.00.66.410.514874.21264.19.0
34H128-05S/D7.50.44.610.514874.21264.19.0
34H160-03S/D4.51.316.512.017005.4151.55.011.0
34H160-04S/D6.00.79.212.017005.4151.55.011.0
34H160-05S/D7.50.56.312.017005.4151.55.011.0

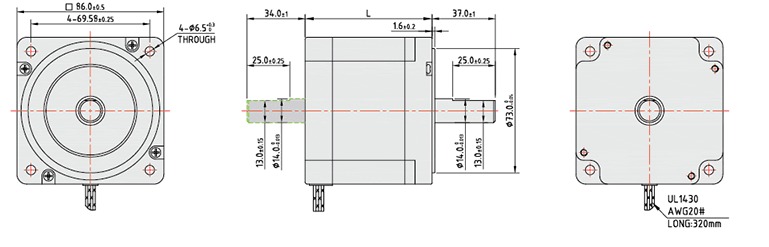

  Dimensions（Unit:mm）
