close loop stepper motor Nema23
商品图片
 Price: $ 42.00
- + pcs

General Specifications

Nema 23 step servo motor and driver

  • Full closed loop

  • Low heat/high efficiency

  • Smooth and accurate

  • High speed response

  • High torque /high speed

Typical applications：

CNC machine ,cutting machine ,engraving machine



  Electrical Specifications













CurrentResistanceInductanceHolding torqueInertiaLengthWeight
AΩ±10%mH±20%N·mOZ·ing/cm²mm ±1KgLbs
23HF42 E1.04.29.00.685.014042.50.461.0
23HF45 E1.04.511.00.8113.318045.50.521.2
23HF51 E1.05.316.41.0141.624051.50.641.4
23HF55 E1.05.821.01.2170.028055.50.721.6
23HF65 E2.02.06.11.7240.835064.50.861.9
23HF76E2.02.49.02.0283.348076.51.052.3

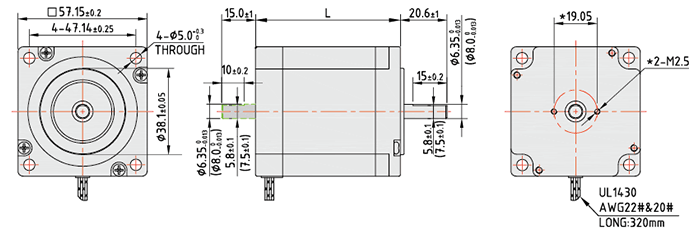

  Dimensions（Unit:mm）


Nema 57 201409130217090.gif
