Introduction:
DM860AC is new digital stepper motor driver which adopts latest 32-bit DSP control technology and built-in microstepping technology. Users can set microsteps within 25600step/rev, and any current value within rated current range. DM860AC driver greatly improves stability and reduces noise under low subdivision. Automatic parameter tuning is integrated inside this driver, can help automatically adjust to the best operation parameters to maximize performance of different stepper motors. Specifications: Parameters | Min | Typical | Max | Unit | Output Current (Peak) | 2.1 | - | 8.4 | Amps | Supply voltage | 30VAC (DC40V) | 60VAC (DC80V) | 80VAC(DC110V) | VAC | Logic Input Current | - | 10 | - | mA | Pulse input frequency | - | - | 250 | KHz | Low Level Time | 2.5 | - | - | µsec |
Environment: Cooling | Natural Cooling or Forced Convection | Environment | Space | Avoid dust, oil frost and corrosive gases | Ambient Temperature | 0°C－65°C | Humidity | <80%RH | Vibration | 5.9m/s² Max | Storage Temp. | -10°C －80°C | Weight | Approx. 0.58Kg |
Current/Subdivision sets: | Current | | Switch | Current(A) | | SW1 | SW2 | SW3 | Peak | AVG | | 0 | 0 | 0 | 2.1A | 1.5A | | 1 | 0 | 0 | 3.15A | 2.25A | | 0 | 1 | 0 | 4.03A | 2.88A | | 1 | 1 | 0 | 4.78A | 3.42A | | 0 | 0 | 1 | 5.69A | 4.06A | | 1 | 0 | 1 | 6.44A | 4.60A | | 0 | 1 | 1 | 7.35A | 5.25A | | 1 | 1 | 1 | 8.4A | 6.0A |
Current switch：SW1，SW2，SW3； Static half flow or flow optional: (SW4,ON flow; OFF: Half flow) Subdivision switch:SW5/6/7/8 We can reference the silk-screen printing details Switch open sets (OFF=0,ON=1) Step/Rev | SW5 | SW6 | SW7 | SW8 | 400 | ON | ON | ON | ON | 800 | OFF | ON | ON | ON | 1600 | ON | OFF | ON | ON | 3200 | OFF | OFF | ON | ON | 6400 | ON | ON | OFF | ON | 12800 | OFF | ON | OFF | ON | 25600 | ON | ON | ON | OFF | 51200 | OFF | OFF | OFF | ON | 1000 | ON | ON | ON | OFF | 2000 | OFF | ON | ON | OFF | 4000 | ON | OFF | ON | OFF | 5000 | OFF | OFF | ON | OFF | 8000 | ON | ON | OFF | OFF | 10000 | OFF | ON | OFF | OFF | 20000 | ON | OFF | OFF | OFF | 40000 | OFF | OFF | OFF | OFF |
|

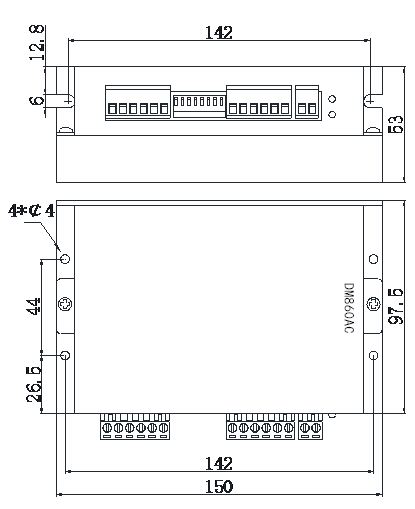

General Specifications
