UCS-2450
商品图片
 Price: $ 0.0
- + pcs

General Specifications

tem specifics

Cite 32 bits motor control DSP IC;

16 kinds microstep. Voltage range DC24-50V;

Pulse frequency up to 500khz;

Speed up to 2500rpm;

Build-in Arrival and Error Alarm output.

Easy for inspection and control;

Intelligently adjust Current by load .Reduce vibration, noise, heat, efficiency enhanced by 35%;

Selection om single and double pulse, Default value: Pulse+Direction control;

Perfectly combinate the advantages of servo and stepper. excellent speed and rigidity.

Current max: 4.5A

  Electrical Specifications


Typical Application:

Widely applied in engraving machines, industrial sewing machines, wire-stripping machines, label-making machine, laser equipments ,CNC tools and so on.

Fit for Nema 17 and Nema 23 close-loop stepper motor

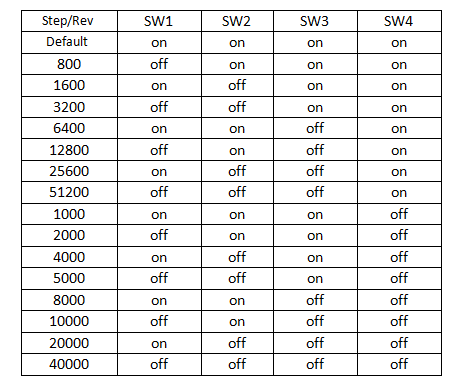

Driver subdivision:

See below tables

Or customize scale 800～51200 Step/Rev。

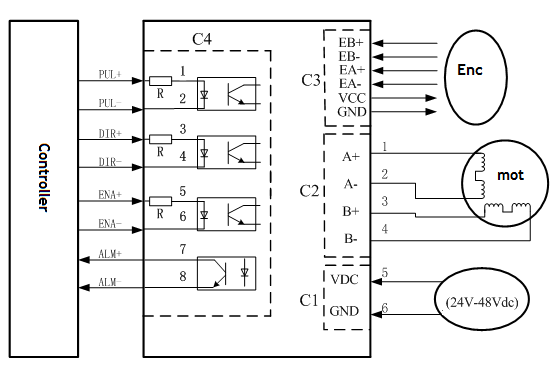

Connection

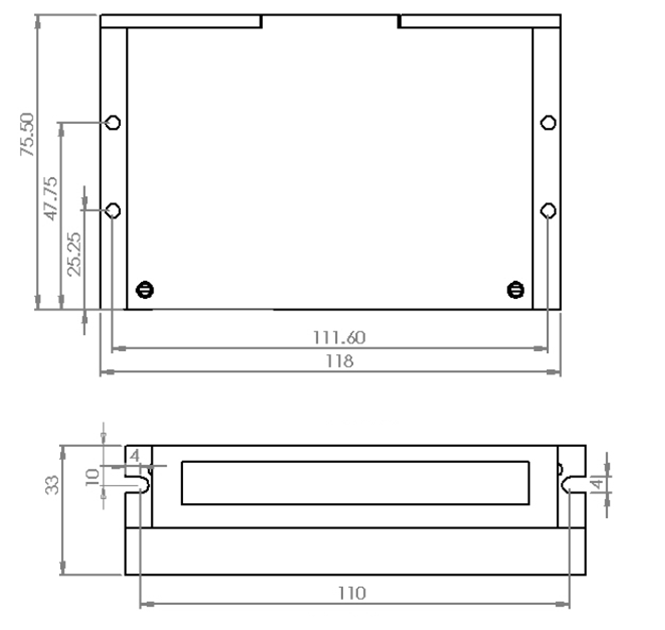

  Dimensions（Unit:mm）


Product Diagram:mm
